Riding Lawn Mowers

Brand: John Deere

John Deere S170 | 48-in

Master your lawn with superior power and comfort!

• 24 HP V-twin ELS engine for tough conditions
• 48 in. Edge™ Cutting System for precision cuts
• Easy Change™ 30-Second Oil Change System

Guaranteed Safe And Secure Checkout

safe-checkout-icons 2
The John Deere S170 lawn tractor is the premium 48-inch deck model of the 100 Series lineup, built in Greeneville, TN, USA. The 24-HP V-Twin John Deere Extended Life Series (ELS) engine offers robust power for mulching, mowing, and bagging on properties up to 2.5 acres. It features a heavy-duty hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in seat with lumbar adjustment, cruise control, easy-read fuel gauge, front bumper, larger tires, premium steering wheel, and fender flares for a comfortable ride. The 48-in three-blade Edge™ Cutting System, with a deep deck design and 12-gauge steel, delivers even cuts from 1 to 4 inches in 1/4-inch increments and supports bagging or mulching. The Easy Change™ 30-Second Oil Change System simplifies maintenance with an all-in-one oil and filter canister. • Engine: 724cc V-twin cylinder with full-pressure lubrication and oil filter for durability. • Cutting Deck: 48-in three-blade Edge™ system with electric PTO for versatile cutting options. • Transmission: Heavy-duty K46 hydrostatic with two-wheel drive and side-by-side pedal control. Box includes: Riding Lawn Tractor.

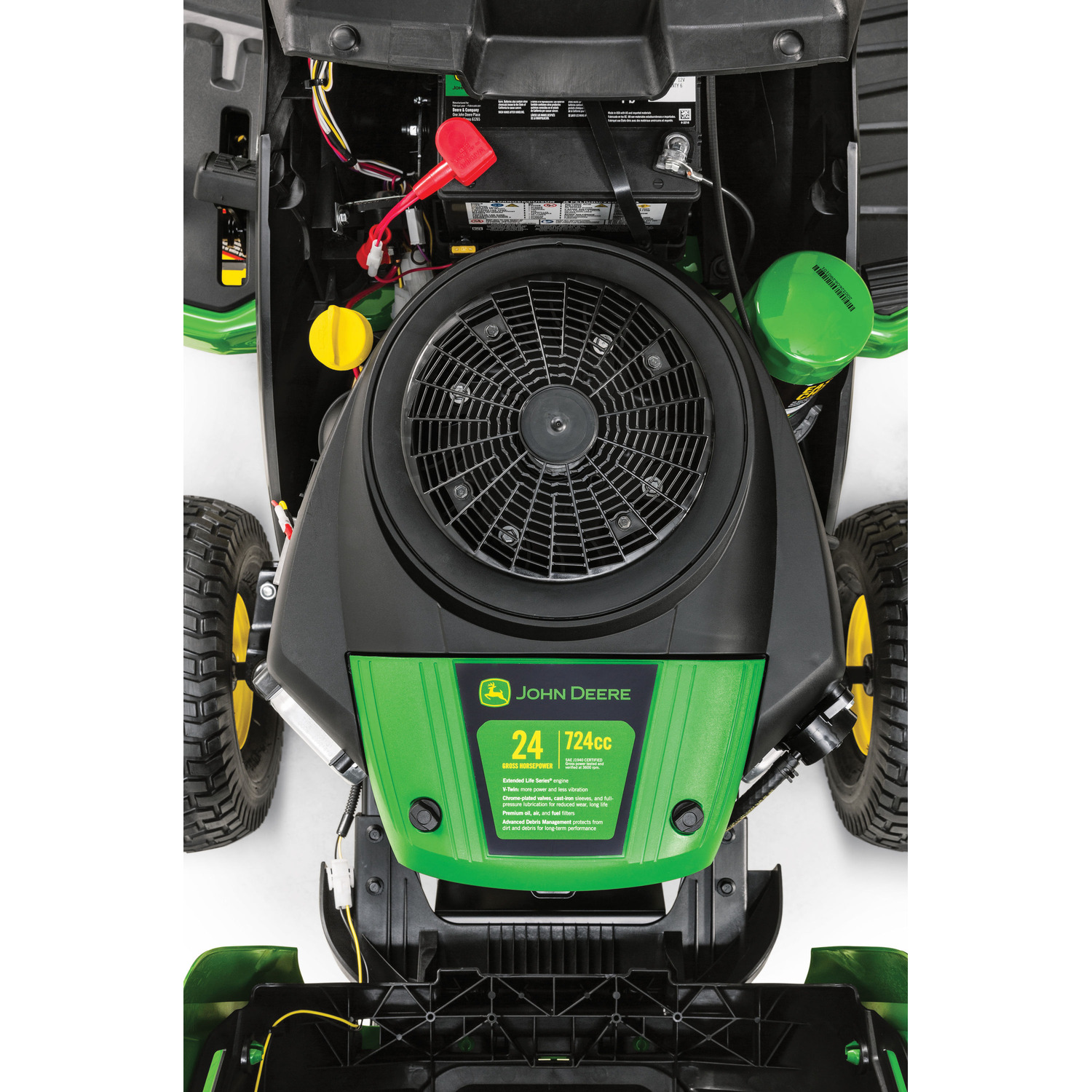

Engine

  • Power: 24 HP (17.9 kW)
  • Displacement: 44.2 cu in (724 cc)
  • Manufacturer/Model: 44U877 (M44)
  • Type: Overhead valve, full-pressure lube, oil filter
  • Cylinders: V-twin – extended life series (ELS)
  • Governor: Mechanical
  • Choke/Speed Control: Single lever with spring-return on choke
  • Cooling Method: Air
  • Air Cleaner: Cartridge with prefilter
  • Fuel Delivery: Pulse pump and carburetor
  • Fuel Gauge: Easy-read on dash
  • Fuel Tank Capacity: 2.4 U.S. gal (9.1 L)
  • Fuel Fill Opening: Center, 1.75 in (4.45 cm)

Electrical System

  • Battery: 12 V, 300 CCA
  • Charging System: Regulated, 14 amp
  • Engine Starter: Bendix type
  • Hour Meter: Yes
  • Headlights: Two standard, incandescent
  • Taillights or Reflector: Reflectors

Transaxle

  • Type: K46 heavy-duty hydrostatic, 2-wheel drive
  • Control: Side-by-side pedals
  • Cruise Control: Standard
  • Forward Speed: 0-5.5 mph (0-8.9 km/h)
  • Reverse Speed: 0-3.2 mph (0-5.2 km/h)
  • Brakes: Internal wet disk

Cutting Deck

  • Width: 48 in (122 cm)
  • Material: 12-gauge steel (0.105 in, 2.7 mm)
  • Construction: Stamped steel deck shell
  • Height Range: 1-4 in (2.5-10.2 cm)
  • Positions: 13
  • Height Increments: 0.25 in (0.64 cm)
  • Engagement: Electric PTO
  • Wash Port: Yes
  • Blades: Three

Chassis

  • Frame: Full-length welded 12-gauge steel
  • Front Axle: Cast-iron with sealed ball bearings
  • Front Tires: 16×6.5-8
  • Rear Tires: 22×9.5-12
  • Turning Radius: 18 in (45.7 cm)
  • Uncut Circle Radius: 20 in (50.8 cm)

Seat

  • Type: One piece with lumbar adjustment
  • Height: 15 in (38 cm)
  • Adjustment: 5.5 in (14 cm) fore-aft
  • Suspension: Tilt, two coil springs

Additional Features

  • Max Towing Capacity: 500 lb (227 kg)
  • Attachments: 48-in bagger, mulch cover, tow cart, sweeper, front blade, snow blower, aerator, canopy, cover, air filter, mower blades, belts
  • Model Number: N/A

Warranty

  • Residential Warranty: 2-year/120-hour bumper-to-bumper
  • Commercial Warranty: No

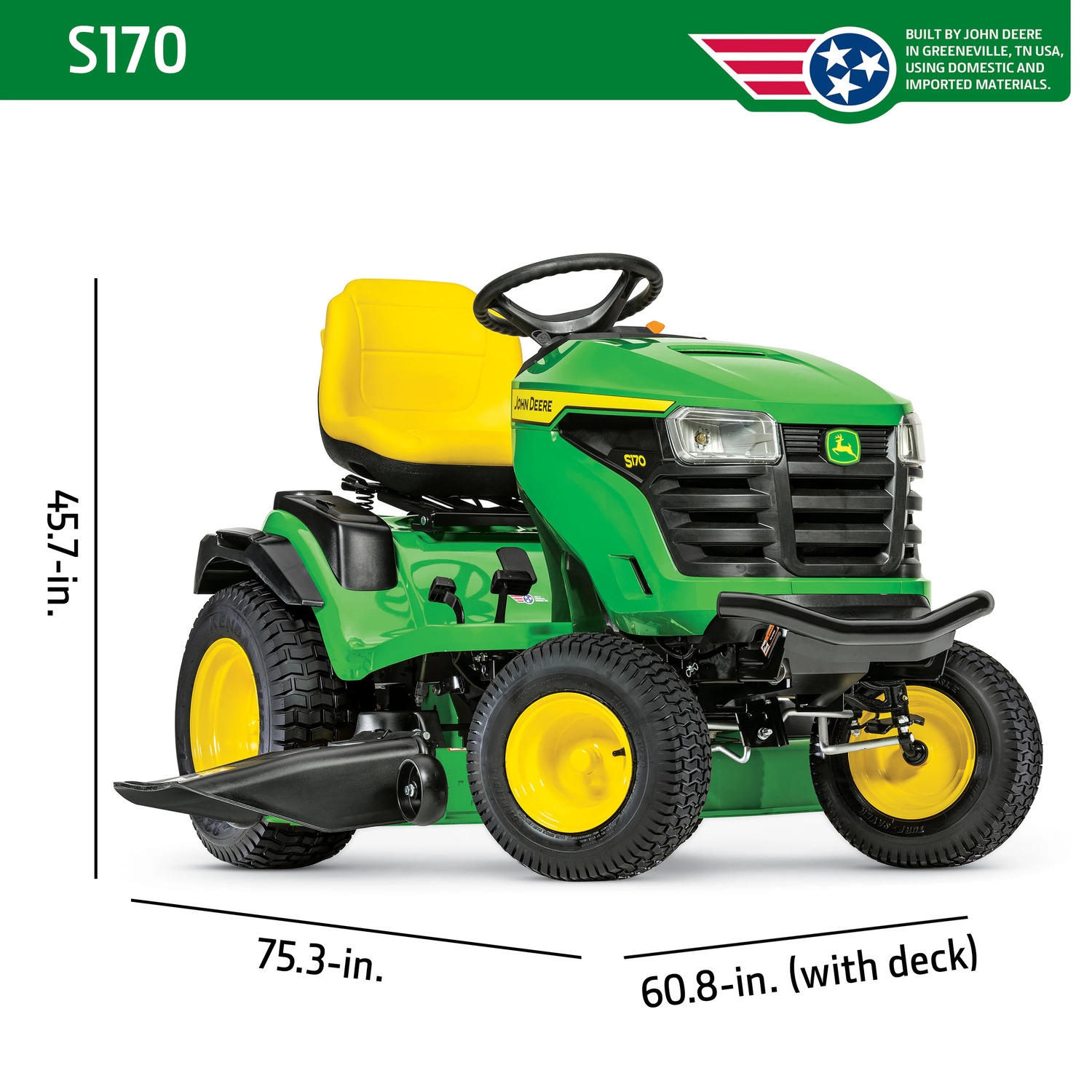

Dimensions

  • Height: 45.7 in (1160 mm)
  • Length: 75.3 in (1913 mm)
  • Wheelbase: 48.9 in (1242 mm)
  • Width with Mower: 60.8 in (1544 mm)
  • Width without Mower: 39.2 in (996 mm)
  • Weight: 503 lb (228 kg) without fuel

Manufacturing

  • Location: Greeneville, Tennessee, USA
