Zero Turn Lawn Mowers

Brand: John Deere

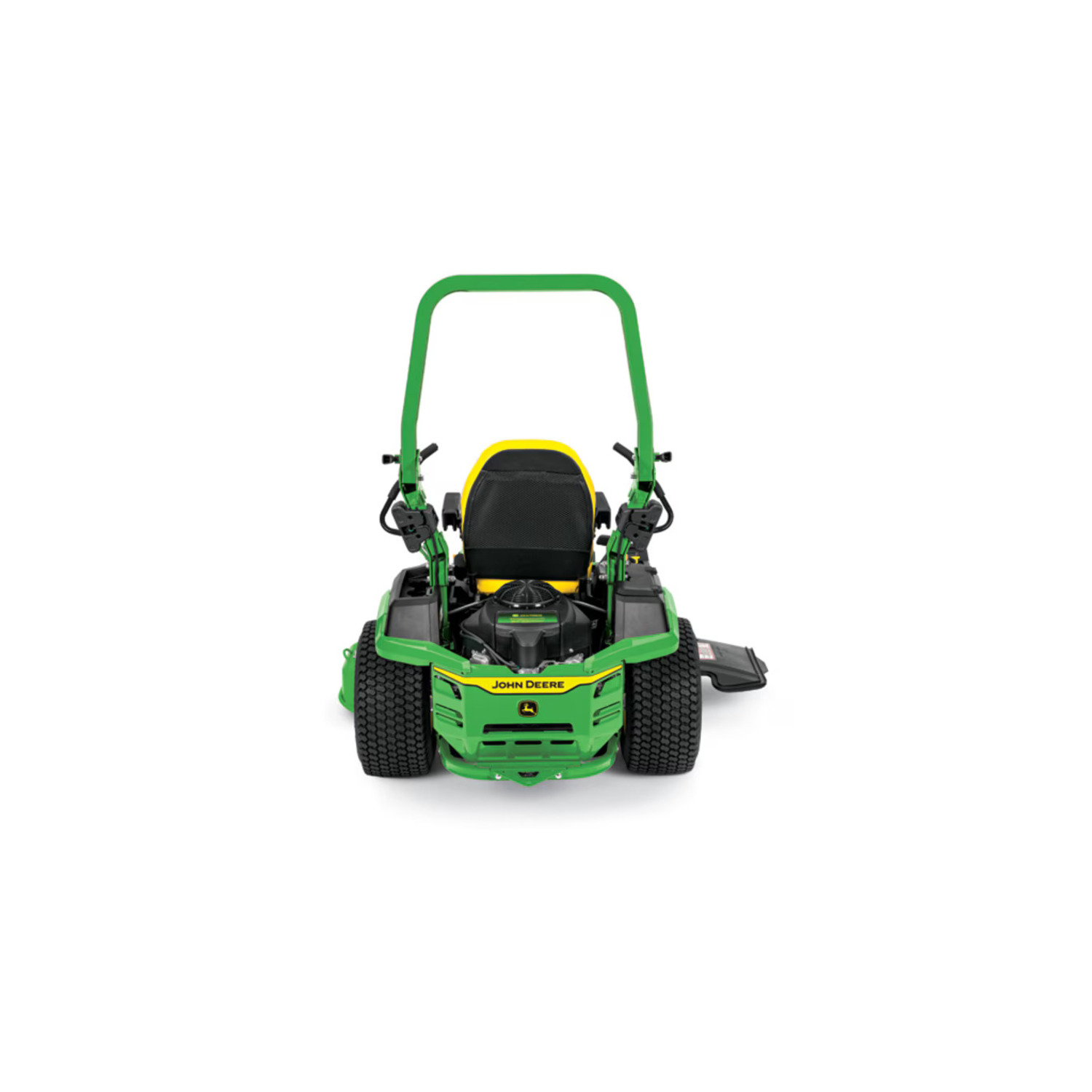

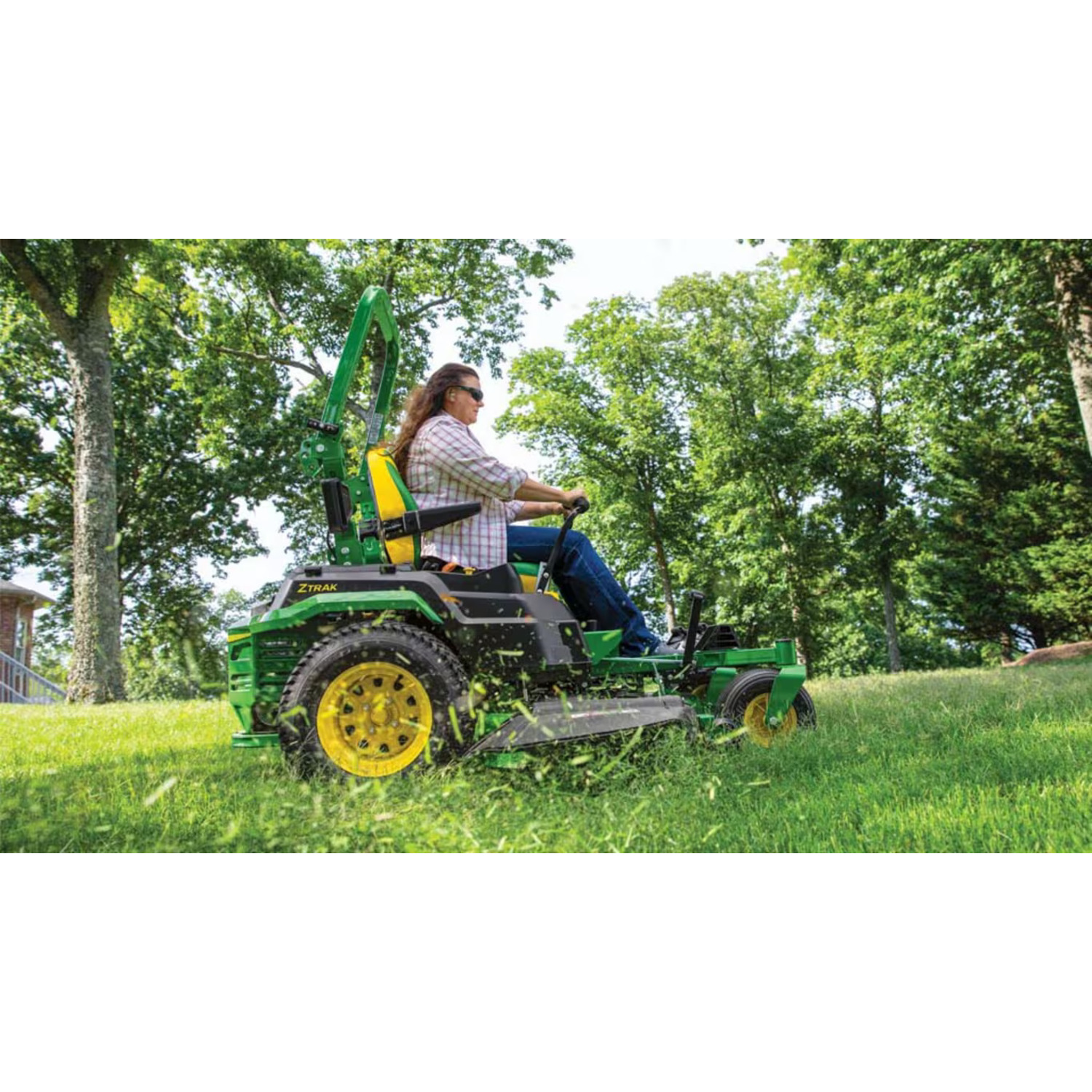

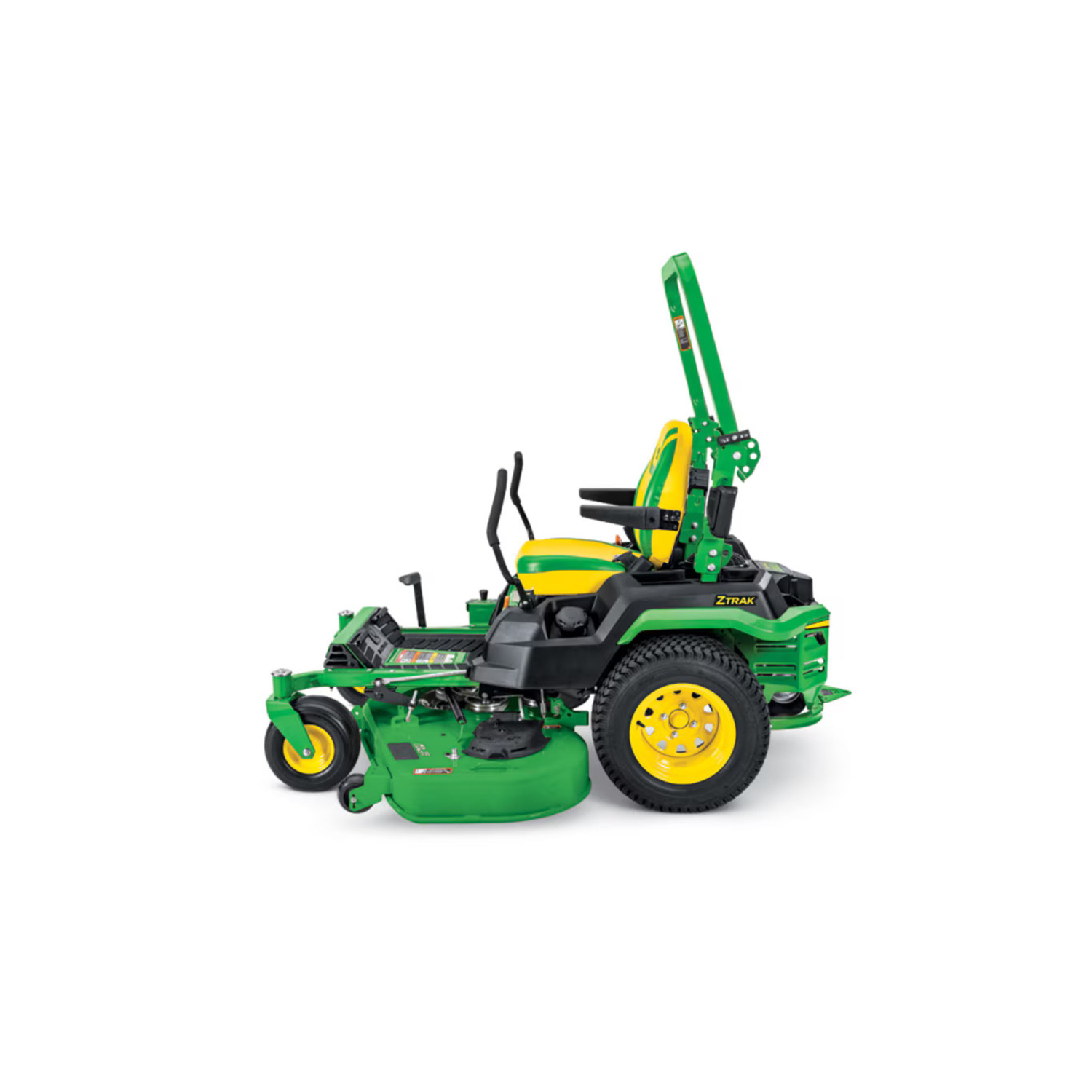

John Deere Z545R ZTrak™ | 48-in / 54-in / 60-in

Elevate your mowing with precision and power!

• 25 HP EFI engine with Electronic Throttle Control
• 48-, 54-, or 60-in. High-Capacity Mower Deck with MulchControl™ option
• 4-year/500-hour bumper-to-bumper warranty

Guaranteed Safe And Secure Checkout

safe-checkout-icons 2
The John Deere Z545R ZTrak™ mower, assembled in Greeneville, Tennessee, USA, delivers exceptional performance with a 25 HP (18.6 kW) EFI engine featuring Electronic Throttle Control. It offers 48-, 54-, or 60-in. High-Capacity mower decks with an optional MulchControl™ kit for versatile cutting. The mower includes a 22.5-in. seat with armrests and ComfortGlide™ suspension, twin premium levers with 18-position adjustment, and a 4-year/500-hour bumper-to-bumper warranty. Standard features include a foldable ROPS, foot lift system, and a 4.5 U.S. gal fuel tank with electric gauge. • Engine: 724cc V-twin with full-pressure lubrication and replaceable filter. • Cutting Deck: 48-, 54-, or 60-in 9-gauge forged steel deck with high-capacity side discharge. • Transmission: Tuff Torq TZT7-M dual hydros with 1-in. axles. Box includes: Zero-Turn Mower.

Engine

  • Power: 25 HP (18.6 kW)
  • Displacement: 44.2 cu in (724 cc)
  • Model Number: HTR EFI/ETC
  • Type: Overhead valve
  • Cylinders: V-twin
  • Lubrication: Full pressure with replaceable filter, 2 U.S. qt (1.9 L)
  • Choke/Speed Control: Separate control levers
  • Cooling Method: Air
  • Fuel Tank Capacity: 4.5 U.S. gal (17 L)
  • Fuel Gauge: Electric gauge and fuel level sight line

Transmission

  • Type: Tuff Torq TZT7-M dual hydros with 1-in. (2.5-cm) axles
  • Control: Twin premium levers, 2-height/9-fore-aft, 18 positions
  • Forward Speed: 0-9 mph (0-14.5 km/h)
  • Reverse Speed: 0-4.5 mph (0-7.2 km/h)

Cutting Deck

  • Width: 48 in (122 cm), 54 in (137 cm), or 60 in (152 cm)
  • Material: 9 gauge (0.150 in, 3.8 mm)
  • Construction: Forged steel deck shell
  • Height Range: 1-4 in (2.5-10.2 cm)
  • Positions: 13
  • Height Increments: 0.25 in (0.64 cm)
  • Engagement: Electric PTO, 125 lb-ft (169.5 Nm)
  • Discharge: High-capacity side

Chassis

  • Frame: Heavy-duty frame tubing
  • Front Caster Tires: 13×6.5-6
  • Drive Tires: 23×10.5-12
  • Turning Radius: Zero-turn
  • Wheelbase: 49.2 in (1250 mm)

Seat

  • Type: High back with armrests and ComfortGlide™
  • Height: 22.5 in (57.1 cm)
  • Adjustment: While seated, 3 in (7.6 cm) fore-aft
  • Suspension: Two springs and ComfortGlide

Additional Features

  • Max Towing Capacity: 250 lb (113 kg)
  • Attachments: Optional MulchControl™, 6.5 bu Power Flow rear bagger (not available on 60HC)
  • Model Number: N/A

Warranty

  • Residential Warranty: 4-year/500-hour bumper-to-bumper
  • Commercial Warranty: No

Dimensions

  • Height: ROPS folded: 49.2 in (1250 mm); ROPS raised: 71.7 in (1821 mm)
  • Length: 81.9 in (2080 mm)
  • Width with Mower: 48 HC: 62.4 in (1585 mm); 54 HC: 68.3 in (1735 mm); 60 HC: 73.5 in (1867 mm)
  • Width without Mower: 48.7 in (1237 mm)
  • Weight: 48HC: 826 lb (375 kg); 54HC: 832 lb (378 kg); 60HC: 840 lb (382 kg)

Manufacturing

  • Location: Greeneville, Tennessee, USA

Engine

  • Power: 25 HP (18.6 kW)
  • Displacement: 44.2 cu in (724 cc)
  • Model Number: HTR EFI/ETC
  • Type: Overhead valve
  • Cylinders: V-twin
  • Lubrication: Full pressure with replaceable filter, 2 U.S. qt (1.9 L)
  • Choke/Speed Control: Separate control levers
  • Cooling Method: Air
  • Fuel Tank Capacity: 4.5 U.S. gal (17 L)
  • Fuel Gauge: Electric gauge and fuel level sight line

Transmission

  • Type: Tuff Torq TZT7-M dual hydros with 1-in. (2.5-cm) axles
  • Control: Twin premium levers, 2-height/9-fore-aft, 18 positions
  • Forward Speed: 0-9 mph (0-14.5 km/h)
  • Reverse Speed: 0-4.5 mph (0-7.2 km/h)

Cutting Deck

  • Width: 48 in (122 cm), 54 in (137 cm), or 60 in (152 cm)
  • Material: 9 gauge (0.150 in, 3.8 mm)
  • Construction: Forged steel deck shell
  • Height Range: 1-4 in (2.5-10.2 cm)
  • Positions: 13
  • Height Increments: 0.25 in (0.64 cm)
  • Engagement: Electric PTO, 125 lb-ft (169.5 Nm)
  • Discharge: High-capacity side

Chassis

  • Frame: Heavy-duty frame tubing
  • Front Caster Tires: 13×6.5-6
  • Drive Tires: 23×10.5-12
  • Turning Radius: Zero-turn
  • Wheelbase: 49.2 in (1250 mm)

Seat

  • Type: High back with armrests and ComfortGlide™
  • Height: 22.5 in (57.1 cm)
  • Adjustment: While seated, 3 in (7.6 cm) fore-aft
  • Suspension: Two springs and ComfortGlide

Additional Features

  • Max Towing Capacity: 250 lb (113 kg)
  • Attachments: Optional MulchControl™, 6.5 bu Power Flow rear bagger (not available on 60HC)
  • Model Number: N/A

Warranty

  • Residential Warranty: 4-year/500-hour bumper-to-bumper
  • Commercial Warranty: No

Dimensions

  • Height: ROPS folded: 49.2 in (1250 mm); ROPS raised: 71.7 in (1821 mm)
  • Length: 81.9 in (2080 mm)
  • Width with Mower: 48 HC: 62.4 in (1585 mm); 54 HC: 68.3 in (1735 mm); 60 HC: 73.5 in (1867 mm)
  • Width without Mower: 48.7 in (1237 mm)
  • Weight: 48HC: 826 lb (375 kg); 54HC: 832 lb (378 kg); 60HC: 840 lb (382 kg)

Manufacturing

  • Location: Greeneville, Tennessee, USA
